AIRCRAFT PROGRAM
| Lift type | Fixed wing | ||
| Construction type | Factory-built | ||
| Control type | Piloted | ||
| Engine type | Turboprop | ||
| Application | Cargo, Military Transport | ||
| Final assembly | Seville | ||
| Search for other aircraft programs with these properties on the Aircraft Programs directory page. | |||
Subscribe today
and log in for unlimited access

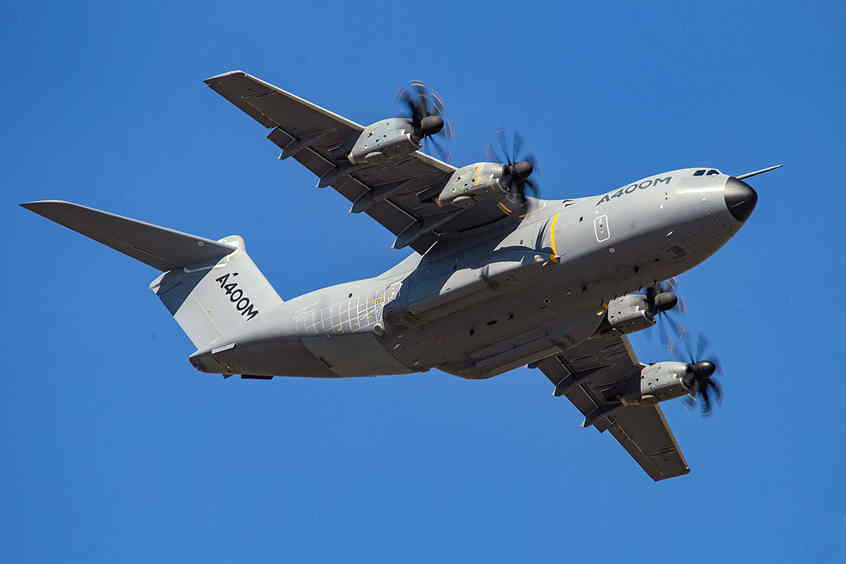

Medium transport, military aircraft with capability to take off and land from short and rough air strips. With a cargo payload of 37 tonnes, the A400M is used for tactical airlift, strategic airlift, medical evacuation and air-to-air refuelling.

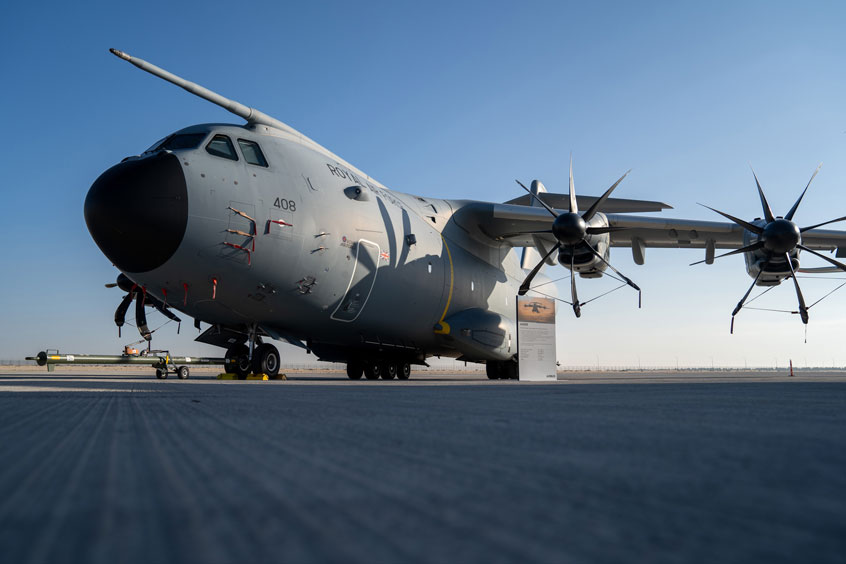

A high wing aircraft with t-tail configuration, large fuselage cross section for maximum cargo hold and removable refuelling probe above cockpit. 4 eight-blade composite propellers, two per wing turning in opposite directions, 4 turboprop engines and 6 wheel landing gear.
Airframe is constructed from aluminium alloy as are the rudder structural frame. Titanium alloy is used around windscreen, wing/fuselage joints, and landing gear components as well as tail plane central joint. Over a third of structure is made from composite materials including tail plane outer boxes, wing box, trailing edge shroud and most of the rudder. Wing skins, stringers, spars and moving surfaces are made from carbon fibre composites; landing gear doors and fairings from glass fibre or carbon fibre.

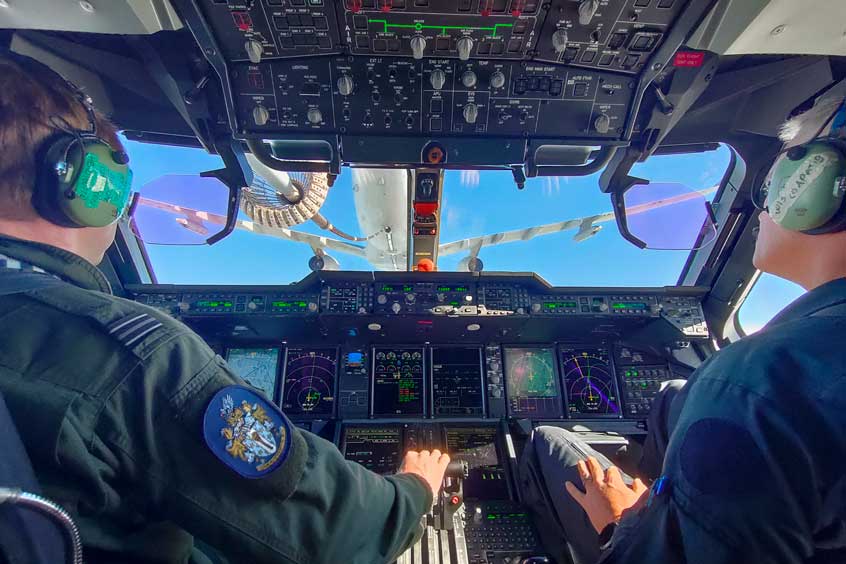

2 pilots and additional crew member in a full glass cockpit face two mission computers, two wide angled head-up displays and 8 colour head-down displays with side stick controllers each, centrally positioned throttle control and fly-by-wire control systems with side stick controllers.
| Variant | Launch/First flight | Production end | |
| Airbus A400M Atlas | 1995 / 2009 | Turboprop mulitrole aircraft. |
View full news archive for the Airbus A400M.
| Airbus Defence & Space HQ | News |
Other aircraft programs: Airbus A330, Airbus (Airtech) CN235, Airbus C295
| Design | Design (3) Design Software (2) |
| Materials | Coatings (1) Composites (7) Metals (2) |
| Components | Active Electronic Components (3) Actuation (7) Bearings (1) Covers & Accessories (1) Electrical Components (5) Fasteners (3) Lighting (3) Mechanical Components (13) Mechanical Connectors (2) Non-Mechanical Components (3) Passive Electronic Components (1) Sensors, Transducers & Detectors (6) Structural Components (15) Switches (1) Valves (5) Windows & Glass (2) |
| Airframe Systems | Airframe Assemblies (26) Cabin Interiors (2) Cargo Systems (4) Crew Seating (1) Environmental Systems (9) Fluid Power (6) Landing Assemblies (6) Oxygen Systems & Equipment (3) Safety & Security Systems (6) Weapons Systems (2) |
| Avionics | Avionic Components (5) Communications (Airborne) (6) Flight and Data Management (13) Imaging and Visual Systems (2) Indicators and Instruments (2) Navigation Aids (Airborne) (3) |
| Power Systems | Auxiliary Power (3) Batteries & Accessories (1) Electrical Power Systems (10) Engine Components (12) Engines (1) Fuel Systems (9) Power Transmission (3) Rotors & Propellers (2) |
| Production | Computer Integrated Manufacturing (2) Handling Equipment (2) Heat Treatment (1) Inspection Equipment (1) Machining (3) Manufacturing Services (1) Measurement (1) Metal Processes (1) Metal Removing (1) Processes (1) Production Control (1) Production Equipment (3) Sheet Metal Processes (1) Surface Treatment (1) Technical Consultants (5) Tooling (5) Tools (6) |
| Testing | Aircraft Operations (1) Computer-Aided Testing (1) Test Equipment (11) Test Services (7) |
| EADCO European Aerospace Design Consultants GmbH | Analysis | Design Services: Centre fuselage lower shell & cargo door |
| Peters Engineering (G.F. Peters & Partner GmbH) | Analysis | Design Services: Secondary structure design - rear fuselage electrical & mechanical brackets. Rear pressure bulkhead |
| Sener Ingenieria & Sistemas SA | Analysis | Design Services: Design of structural components of the horizontal stabilizer, including skins, stringers, rib cores & cleats |
| Autodesk Advanced Manufacturing Facility (AMF) (was Delcam Plc) | Analysis | News | Computer-aided Design: PowerMILL software |
| Vector Informatik GmbH | Analysis | Computer-aided Design: Development & test tool for data busses |
| Chemetall, part of BASF | Analysis | Corrosion Inhibitors: Corrosion protection |
| Cotesa GmbH | Analysis | Composite Structures: Stiffeners, stringer coupling & rip attachment angle |
| EireComposites Teo. | Analysis | Subcontracted Composite Parts: Composite engine spinner assembly |
| Hexcel Composites | Analysis | News | Honeycomb Core Composites: Honeycomb; Prepreg: |
| Kanfit Ltd | Analysis | Composite Structures: Composite structural parts |
| Magnolia Advanced Materials, Inc. | Analysis | Syntactic Composites: Epoxy syntactics |
| MTorres Disenos Industriales S.A. | Analysis | News | Composite Tape Lay-down: Automatic tape laying machine |
| Toray Advanced Composites (NL) | Analysis | News | Prepreg: Cetex PPS for lower & upper connection units, stowage boxes, ice protection plates, brackets, heat shields, avionic racks |
| Engineered Materials (Dexmet Corporation) | Analysis | Foil: Expanded copper foil for lightning strike protection on the wing covers & leading edge, VTP and HTP. |
| Patricomp Oy | Analysis | Metal & Alloy Fabrications: Metal parts of vertical tail plane (for Patria Aerostructures) |
| Diehl Aerospace GmbH | Analysis | Electronic Control Equipment: Doors control & monitoring system |
| Firan Technology Group (FTG) | Analysis | News | Printed Circuit Boards: |
| GE Aviation Systems | Analysis | Multiplexers: Concentrator/multiplexer video unit |
| CESA / Heroux Devtek Spain | Analysis | News | Hydraulic Actuators: Landing gear hydraulic actuators; door & ramp actuation system including 26 actuators & 6 control manifolds |
| Collins Aerospace, Mechanical Systems - Actuation | Analysis | Rotary Actuators: Flap actuation package |
| Collins Aerospace, Propeller Systems (Ratier Figeac) | Analysis | News | Mechanical Actuators: Trimmable horizontal stabilizer actuator |
| Electromech Technologies | Analysis | Electromechanical Actuators: Fuel shutoff valve actuator |
| Elektro-Metall Export | Analysis | Electromechanical Actuators: APU air inlet door actuator; emergency ram air inlet door actuator; Rotary Actuators: Air scoop actuator |
| Liebherr-Aerospace Lindenberg GmbH | Analysis | Hydraulic Actuators: Aileron, elevator and rudder servo control, power control unit, spoiler servo control, and door ramp actuation system |
| Moog Inc. | Analysis | Servoactuators: Fly-by-wire servoactuators for control of primary flight services |
| NMB Minebea UK Ltd | Analysis | Spherical Bearings: |
| Indaero Grupo Emergy (was Indaero Tecnigrab) | Analysis | Pitot Tube Covers: ; Propeller Covers: ; Tarpaulins: ; Wheel Covers: |
| Elimco Aerospace | Analysis | Wire Harnesses: |
| Latécoère | Analysis | Wire Harnesses: VTP harness |
| Safran Electrical & Power Villemur | Analysis | Wire Harnesses: Nose fuselage & cockpit electrical harnesses; engine wiring |
| Safran Transmission Systems | Analysis | Wire Harnesses: Electrical wiring harnesses for TP400-D6 engine |
| Turkish Aerospace Industries (TAI) | Analysis | News | Wire Harnesses: Fuselage wire harnesses |
| Ateliers de la Haute Garonne AHG | Analysis | Solid Rivets: Aeronautical rivets; Shoulder Bolts: ; Self-Locking Bolts: Aluminium lock bolts; Fasteners: Fastener collars |
| Avibank Mfg. Inc. | Analysis | Alignment Pins: Pins, bolts, fasteners & accessories |
| Howmet Fastening Systems, HQ | Analysis | News | Fasteners: Titanium, steel and nickel-based superalloy fastening systems |
| Selex ES Elektronik AS | Analysis | Aircraft Interior Lighting Systems: Prime contractor for LED lighting system, including cargo, service, external & emergency lights, & relevant power sources (through Tusas Aerospace) |
| Sirio Panel S.p.A. | Analysis | Aircraft Interior Lighting Systems: Design responsibility & technology supplier for LED lighting system, including cargo, service, external & emergency lights, & relevant power sources (through Tusas Aerospace) |
| Turkish Aerospace Industries (TAI) | Analysis | News | Aircraft Interior Lighting Systems: Interior lighting; Aircraft Exterior Lighting Systems: Exterior lighting |
| Aerofit, Inc. | Analysis | Fluid Fittings: Fittings |
| Apparatebau Gauting GmbH | Analysis | Fans: |
| Bell-Memphis, Inc. | Analysis | Turnbuckles: Control cable turnbuckles |
| Collins Aerospace, Air Management (Nord-Micro) | Analysis | Ice Protection/Prevention Equipment: De-icing timer for propeller de-icing system |
| Duqueine Group | Analysis | Manifolds & Ducts: Tubes, rolls, pipes, ducts, sleeves, shafts, drums and mandrels in composite |
| Falgayras | Analysis | Windshield Wipers: Windshield wiper system |
| Hutchinson (KTN Nobitz) | Analysis | Manifolds & Ducts: Centre fuselage air conditioning ducts |
| Hutchinson Composite Industrie | Analysis | Manifolds & Ducts: Nose fuselage air conditioning ducts |
| Intertechnique | Analysis | Ice Protection/Prevention Equipment: Anti-ice system control unit |
| Porvair Filtration Group Ltd | Analysis | Filtration Equipment: Filters and filtration systems in hydraulic, fuel lubrication and air systems. |
| Sonaca SA | Analysis | Ice Protection/Prevention Equipment: Wing anti-icing system |
| Teledyne CML Composites | Analysis | News | Camera Mounts: Aircraft flight test camera pods |
| Voss Industries Inc. | Analysis | Flanges: Titanium flanges; stainless steel couplings |
| Senior Aerospace - Bird Bellows | Analysis | Flexible Joints: Flexible joints (including bellow-sealed gimbal joints, axial bellows duct assemblies, pressure-balanced units, tolerance take-up units, and vibreaker elastomer-sealed joints) for engine bleed air, ECS and anti-ice system ducting. |
| Tritech Group Ltd. | Analysis | News | Mechanical Connectors: Machined & cast fuel connectors |
| G & O Springs Ltd | Analysis | Springs: |
| Parker Aerospace - Stratoflex Products | Analysis | Metallic Hoses: Flexible hoses & quick disconnect valves |
| Tods Defence | Analysis | News | Thermal Shielding: Thermoplastic OHD heatshields; wing composite packers |
| Vector Informatik GmbH | Analysis | Data Bus: Bus interface & data logger for CAN |
| AMETEK Aerospace & Defense | Analysis | News | Sensors/Transducers: Hydraulic system sensor package |
| Auxitrol Weston UK | Analysis | Sensors/Transducers: Sensor suite for TP400M engine |
| Elimco Aerospace | Analysis | Sensors/Transducers: Position and tension (current) sensors |
| FCI Aerospace | Analysis | Flow Meters: Flow sensor for air management system |
| Kulite Semiconductor Products, Inc. | Analysis | Transducers: All-welded, hermetically sealed, true vented gauge pressure transducer |
| TransDigm (was Esterline Technologies) | Analysis | Temperature Detectors: High-precision temperature and pressure sensors, fluid and motion control components |
| Aciturri Manufacturing | Analysis | News | Metal Structures: Flush wedge loading ramp |
| Asco Industries N.V | Analysis | Flap/Slat Mechanisms: Flap tracks |
| AVPE Systems | Analysis | Flap/Slat Mechanisms: Flap track |
| BAZ Airborne Components & Assemblies | Analysis | Aircraft Structural Components: Structural parts and assemblies for engine nacelles made from aluminium and steel |
| Eaton Aerospace, Fuel & Motion Control Division | Analysis | Aircraft Structural Components: Reservoir filling & ground service panel |
| Gardner Aerospace | Analysis | News | Precision Machined Parts: wing components & sub-assemblies |
| Hyde Aero Products Ltd. | Analysis | Metal Structures: Wing leading edge metallic details |
| Magellan Aerospace Corp. | Analysis | Aircraft Structural Components: Structural components |
| Mecachrome France | Analysis | Wing Spars: Wing ribs |
| Midland Aerospace | Analysis | Wing Spars: Wing leading & trailing edge spar ribs |
| Otto Fuchs KG | Analysis | Metal & Alloy Forgings: Horizontal tail plane inner fitting forging; fuselage frame |
| Teledyne CML Composites | Analysis | News | Aircraft Structural Components: NACA Duct Assemblies; Aircraft Structural Components: Composite wing components & assemblies |
| TITAL GmbH | Analysis | News | Metal & Alloy Castings: Aluminium & titanium investment castings, titanium pin latch fittings for engine pylons; Metal & Alloy Castings: Investment-cast water extractor for a/c system (for Liebherr) |
| Victoruzzo SL | Analysis | Precision Machined Parts: Landing gear & structural parts |
| voestalpine Bohler Aerospace GmbH & Co KG | Analysis | Metal & Alloy Forgings: Leading edge titanium pylon forgings |
| CESA / Heroux Devtek Spain | Analysis | News | Valves: Non-return & ejector shut-off valves for hot air pneumatic system |
| Crissair (ESCO Fluid Controls) | Analysis | Check Valves: |
| Lee Products Ltd. | Analysis | Hydraulic System Valves: |
| Safran Ventilation Systems (was Technofan) | Analysis | Check Valves: |
| The Lee Company | Analysis | Solenoid Valves: ; Check Valves: ; Relief Valves: ; Hydraulic System Valves: ; Pressure Control Valves: |
| La Sorem | Analysis | Optical Windows: Onboard portholes |
| PPG Transparencies | Analysis | News | Windows: Cockpit windows; Lenses: Landing & taxi light lenses |
| Aciturri Aerostructures (Aries) | Analysis | Wing Flaps: Wing flap parts; wing fixed vane assembly |
| Aciturri Manufacturing | Analysis | News | Fuselage Sections: Sponsons; Aircraft Control Surfaces: Flaps and vanes |
| AD Industries Composites | Analysis | Fuselage Sections: Cockpit armoured protection |
| Aernnova Aerospace | Analysis | Wings: Carbon fibre wing stringers |
| Aerosud Aviation Pty Ltd | Analysis | Fuselage Sections: Nose fuselage flexible lining; cargo hold lining; cockpit linings; rigid bulkhead; Wings: Wing tip |
| Airbus Atlantic Colomiers (Toulouse) (was STELIA Aerospace Toulouse) | Analysis | News | Nose Cones: Nose fuselage; Fuselage Sections: Mechanically milled 3D fuselage panels |
| Airbus Defence & Space (Structures) | Analysis | News | Aircraft Control Surfaces: Horizontal stabiliser; flap track fairings; vertical tail plane leading & trailing edges; elevators |
| Airbus Deutschland GmbH | Analysis | Wings: Wing panels; Fuselage Sections: Centre fuselage; rear fuselage assembly; fuselage furnishing; pre-final assembly line; Empennages: Vertical tail plane box & assembly; Wing Flaps: Flaps |
| Airbus S.A.S. | Analysis | News | Fuselage Sections: Centre wing box; Nose Cones: Nose fuselage; nose landing gear bay; Fuselage Sections: Sponsons; Aircraft Control Surfaces: Rudder; Fairings: Wing fuselage fairing; Airborne Consoles: Cockpit furnishings |
| Composite Technology Research Malaysia (CTRM) | Analysis | Aircraft Control Surfaces: Vertical tail pane leading edge panels; horizontal tail plane trailing edge panels & actuator fittings; wing trailing edge panels; Fairings: Nacelle extension fairing; fuel pump fairing; Aircraft Doors: Main landing gear doors |
| Daher | Analysis | News | Aircraft Doors: Nose landing gear doors; Fairings: Carbon composite wing-fuselage fairing |
| Eaton Aerospace Group (MIssion Systems Divison) | Analysis | News | Air Refuelling Systems: Air refuelling system including 908E wing pods & 808E fuselage refuelling units |
| ECE | Analysis | Steering Systems: Nose wheel steering unit |
| Figeac-Aero | Analysis | Airborne Consoles: Centre pedestal & lateral console |
| GKN Aerospace | Analysis | News | Wings: Metal & composite wing trailing edge subassemblies; composite wing spars; wing leading edge & trailing edge composite details & panels; Air Refuelling Systems: Lightweight air to air refuelling pylon for the wing dispense equipment |
| GKN Aerospace - Filton | Analysis | News | Wings: Outer wing box, flaps |
| Hamble Aerostructures (Aernnova Group) (was GE Aviation) | Analysis | News | Air Refuelling Systems: In-flight refuelling probe |
| Leonardo Aeronautics (Alenia) | Analysis | Fuselage Sections: Aft fuselage |
| Liebherr-Aerospace Toulouse SAS | Analysis | News | Bleed Air Systems: Nacelle anti-ice system, bleed air & leak detection (with EADS CASA) |
| Northrop Grumman Innovation Systems - Flight Systems Group (was Orbital ATK) | Analysis | News | Wings: Composite wing cover stringers |
| Patria Aerostructures OY | Analysis | Fairings: Vertical tail plane tip fairing |
| Premium AEROTEC GmbH | Analysis | News | Fuselage Sections: Aft fuselage shells; Aircraft Doors: Cargo doors |
| Saab Aerostructures | Analysis | Aircraft Doors: Crew entrance door |
| SABCA | Analysis | Empennages: Vertical tail plane stringers; flap master supports |
| Sonaca SA | Analysis | Wings: Wing fixed leading edges; leading edge cowlings; Aircraft Doors: Main landing gear doors |
| Turkish Aerospace Industries (TAI) | Analysis | News | Fuselage Sections: Forward centre fuselage; tail cone & top shell on rear fuselage; Aircraft Doors: Paratroop doors & hatch doors; Aircraft Control Surfaces: Ailerons & spoilers |
| Recaro Aircraft Seating | Analysis | Passenger Seating: |
| TEAM t/a Cobham Avionics | Analysis | Automatic Passenger Briefing Equipment: Passenger address system |
| Capewell Systems, LLC | Analysis | Cargo Systems: Aerial delivery platform; buffer stop assembly; tow plate |
| Jan-Al Cases | Analysis | Cargo Containers: ATA 300 cargo cases |
| PFW Aerospace AG | Analysis | Cargo Systems: Cargo handling system structural floor & drainage system; aerial delivery system |
| Rheinmetall Defence Electronics GmbH | Analysis | Cargo Systems: Cargo hold Loadmaster control system electronics |
| Airbus Atlantic Merginac (Bordeaux) (was Stelia Aerospace) | Analysis | Crew Seating: Troop seats; cockpit seats |
| Adams Rite Aerospace, Inc. | Analysis | Water Heaters: Stand-alone water heater for lavatories; Water Systems: Water faucet |
| BASF Corps | Analysis | Air Purification Systems: Ozone converter |
| Hutchinson Aerospace (Olutex) | Analysis | Thermal Insulation: Centre fuselage insulation |
| Johns Manville, Inc. | Analysis | Thermal Insulation: Fibre glass insulation blankets & felt |
| Liebherr-Aerospace Toulouse SAS | Analysis | News | Air Conditioning Equipment: Air generation & temperature control systems/VCS/CPCS |
| MT Aerospace AG | Analysis | Water Systems: Lightweight potable & waste water tanks |
| Sofrance | Analysis | Air Filters: On-board oxygen generating system filter |
| Turkish Aerospace Industries (TAI) | Analysis | News | Waste Water Systems: |
| Ultra Electronics Precision Control Systems | Analysis | Vibration Damping Materials: Tuned vibration absorber system (TVAS) |
| Airbus Atlantic Colomiers (Toulouse) (was STELIA Aerospace Toulouse) | Analysis | News | Hydraulic Systems & Equipment: Cabin systems tubes & pipes; central fuselage system tubes & pipes |
| ASG Luftfahrttechnik & Sensorik GmbH | Analysis | Hydraulic Pumps: Hand pump |
| CESA / Heroux Devtek Spain | Analysis | News | Reservoirs: Hydraulic reservoirs, including sensors |
| Intertechnique | Analysis | Hydraulic Systems & Equipment: Hydraulic system monitoring unit |
| Pall GmbH Luftfahrttechnik | Analysis | Reservoirs: Reservoir pressurisation unit & bleed air restrictor |
| The Lee Company | Analysis | Hydraulic Filters: ; Hydraulic Systems Restrictors: |
| CESA / Heroux Devtek Spain | Analysis | News | Aircraft Landing Gear: Nose landing gear main fitting, turning tube & steering kit parts |
| Crane Aerospace & Electronics | Analysis | Brake System Components: Brake control & monitoring system incorporating Remote Integrated Braking Services |
| Crane Aerospace/Hydro-Aire Inc. | Analysis | Anti-Skid Brakes & Systems: Braking & anti-skid control system |
| Dunlop Aircraft Tyres Ltd. | Analysis | News | Tyres: Bias ply nose and main tyres |
| ECE | Analysis | Landing Gear Controls: Landing gear control lever |
| Safran Landing Systems | Analysis | News | Aircraft Landing Gear: Landing gear system; Aircraft Landing Gear: SLK (steering, landing & kneeling) systems, retraction & extension systems; Aircraft Wheels: ; Carbon Brakes: |
| Air Liquide | Analysis | Oxygen Generation Systems: Onboard oxygen generating system |
| Collins Aerospace, Interiors | Analysis | Oxygen Systems: Integrated passenger & crew oxygen system |
| Intertechnique | Analysis | Oxygen Systems: Oxygen system control unit |
| Apparatebau Gauting GmbH | Analysis | Fire & Smoke Detectors: Smoke detection |
| Nexteam Group SAS | Analysis | Evacuation Systems: Emergency evacuation doors |
| Parker Meggitt - MUSA/PLC | Analysis | Fire Fighting/Detection Systems: Fire extinguishing - engines |
| Parker Meggitt Safety Systems | Analysis | Fire Fighting/Detection Systems: Fire detection system, comprising control computer & fire detectors for engine, main landing gear & auxiliary power unit |
| Schroth Safety Products GmbH | Analysis | Seat Belts: Troop restraint systems |
| Techtest Limited | Analysis | Emergency Locator Transmitters: Emergency locator beacon |
| Elbit Systems Ltd | Analysis | Weapons Countermeasures: MUSIC distributed countermeasures |
| Turkish Aerospace Industries (TAI) | Analysis | News | Weapons Countermeasures: Directional Infrared Counter Measures (DIRCM) system |
| Indra Sistemas, S.A. | Analysis | Radar Receivers: Radar warning receiver |
| Latécoère | Analysis | Avionics Racks: 2900 VU main avionics bay |
| Latelec | Analysis | News | Avionics Racks: ; Avionics Racks: Avionics bays |
| Safran Electrical & Power Villemur | Analysis | Avionics Racks: Non-Arinc avionics racks & relay boxes |
| Sirio Panel S.p.A. | Analysis | Control Panels: Integrated control panel system including integrated control panels; front face panels; lighting management units |
| Cobham Aerospace Connectivity (was Cobham Antenna Systems) | Analysis | Communication Antennas: Tuneable V/UHF antenna; VDR antenna; IFF antenna; passive V/UHF antenna; Satcom |
| Cobham SATCOM | Analysis | Communication Antennas: HGA-7001 high gain antenna subsystem |
| Collins Aerospace, Avionics Division | Analysis | Radio Communications Equipment: HF-9500 high frequency communications system; Satcom; VHFDL |
| HR Smith (Technical Developments) Ltd | Analysis | Communication Antennas: Antennas |
| Rohde & Schwarz | Analysis | News | Radio Communications Equipment: M3AR family software radios; ELCRODAT 4-2 crypto units |
| Tecnobit (grupo OESIA) | Analysis | Onboard Intercom Systems: Audio management system |
| Astronautics Corp of America | Analysis | Onboard Computers: Network server system |
| AstroNova Inc. | Analysis | Cockpit Printers: |
| Collins Aerospace, Avionics Division | Analysis | Avionics Management Systems: Avionics Full Duplex Ethernet; avionics communications router; direction finder |
| Curtiss-Wright Defense Solutions | Analysis | News | Data Acquisition Systems: KAM-500 data acquisition system for TP400 flight tests (for Marshall Aerospace) |
| Diehl Aerospace GmbH | Analysis | Onboard Computers: Integrated modular avionics (with Thales) |
| Elimco Aerospace | Analysis | Cockpit Control Systems: Control Unit 50PN |
| GE Aviation Systems - Digital | Analysis | Cockpit Video Displays: ViDP video distribution & processing system |
| HENSOLDT Sensors GmbH | Analysis | News | Onboard Computers: Digital map generator system; mission management computer; defensive aid computer |
| Moog Controls (UK) | Analysis | Automatic Flight Control Systems: Primary flight controls |
| Saab Electronic Defence Systems | Analysis | Onboard Computers: High lift control computer |
| Safran Electronics & Defense (Components) | Analysis | Health & Usage Monitoring: Aircraft condition monitoring system |
| Thales AVS France | Analysis | News | Flight Management Systems: FMS400 flight management system; integrated modular avionics |
| Thales AVS France | Analysis | Cockpit Control Systems: Enhanced vision systems |
| Honeywell Aerospace, Electronic Systems | Analysis | Weather Mapping Radar: IntuVue advanced weather radar (future availability) |
| Thales AVS France | Analysis | News | FLIR Systems: FLIR enhanced vision system |
| Collins Aerospace, Sensors & Integrated Systems | Analysis | Air Data Computers: SmartProbe air data system |
| Thales AVS France | Analysis | News | LCD Displays: Control & display system, incorporating 8 or 9 large interactive LCD screens; Helmet-Mounted Displays (HMD): TopOwl helmet mounted sight & display |
| Collins Aerospace, Sensors & Integrated Systems | Analysis | News | Terrain Following Radar: TERPROM terrain referenced navigation system |
| Safran Electronics & Defense (Components) | Analysis | Inertial Components & Systems: GPS aided air data inertial reference unit |
| Thales AVS France | Analysis | News | Tacan Receivers: TACAN |
| Collins Aerospace, Power Systems | Analysis | News | Auxiliary Power Units: APU |
| Hutchinson Aerospace | Analysis | APU Components: Engine vibration isolators; APU mounts |
| Pratt & Whitney Rzeszow S.A. | Analysis | Auxiliary Power Units: APS 3240 APU |
| Saft America Inc. | Analysis | Nickel-Cadmium Batteries: Ultra low maintenance rechargeable nickel-cadmium batteries |
| Axon Cable SAS | Analysis | Cable Assemblies: MIL-STD-1553 cable assemblies |
| Collins Aerospace, Electric Power Systems | Analysis | News | Power Distribution Equipment: Secondary electrical power distribution centre; ram air turbine emergency power system |
| ECE | Analysis | Power Distribution Equipment: Emergency power system contactors |
| Elektro-Metall Export | Analysis | Cable Assemblies: Oxygen cable assembly |
| Intertechnique | Analysis | Airborne Electrical Power Supplies: Electrical functions software |
| Leach International Europe | Analysis | Power Distribution Equipment: Primary electrical power distribution centre |
| Parker Meggitt Avrillé (Artus) | Analysis | Power Conversion Equipment: AC/DC power conversion |
| Safran Electrical & Power (was Thales Avionics Electrical Systems) | Analysis | Generating Systems: Variable frequency generator |
| Safran Electrical & Power Sarasota | Analysis | Generating Systems: Main & auxiliary power unit electric generators (through Aerolec) |
| Vermillion Inc. | Analysis | Cable Assemblies: Ram air turbine, electric wench & viton over-molded |
| Aerotech Herman Nelson, Inc. | Analysis | Engine Preheaters: Portable heaters |
| Airbus Defence & Space (Structures) | Analysis | News | Nacelles: |
| Airbus S.A.S. | Analysis | News | Engine Mounts: ; Engine Pylons: |
| BAE Systems plc | Analysis | Full Authority Digital Controls: FADEC (with Hispano-Suiza) |
| Cefival S.a. | Analysis | Piston Rings: Flash butt welded rings for TP400 engine |
| Composite Technology Research Malaysia (CTRM) | Analysis | Nacelles: Common cowling |
| GKN Aerospace | Analysis | News | Engine Inlets: Aluminium alloy engine air inlet |
| ITP Aero (Industria de Turbo Propulsores) | Analysis | News | Engine Parts: Main structures (front structure, turbine exit case, exhaust nozzle), low pressure turbine & dressings for TP400-D6 engines |
| Ruag Aerostructures - Ruag Aerospace Structures GmbH | Analysis | News | Engine Parts: Turbine cases |
| Safran Aero Boosters | Analysis | Oil Tanks: Oil systems for TP400 engine - tank, pump, filter, heat exchanger & anti-leak valve |
| Safran Power Units | Analysis | Air Start Systems: Pneumatic starting system |
| Safran Transmission Systems | Analysis | Engine Controls: Electronic control unit; control system integration; Full Authority Digital Controls: FADEC for TP400-D6 engine |
| Europrop International GmbH | Analysis | News | Turboprop Engines: (TP400 - Airbus A400M Atlas - TP400-D6 ) |
| Airbus Atlantic Colomiers (Toulouse) (was STELIA Aerospace Toulouse) | Analysis | News | Fuel Tanks & Systems: Inflight refuelling tanks |
| Apparatebau Gauting GmbH | Analysis | Fuel Pumps: |
| Intertechnique | Analysis | Fuel Management Systems: Fuel measurement & management system |
| Pall Aerospace Europe | Analysis | Fuel Filters: Filters |
| Parker Aerospace Hydraulic Valve Division | Analysis | Fuel Pumps: Electric motor pumps |
| Parker Aerospace, Air & Fuel Division | Analysis | Fuel Inerting Systems: Fuel tank inerting systems |
| Purolator Advanced Filtration Group | Analysis | Fuel Filters: Filters & elements, lube oil filter kits |
| Safran Transmission Systems | Analysis | Fuel Pumps: Fuel pump, fuel metering unit, injectors |
| Sofrance | Analysis | Fuel Filters: Main fuel filter; Oil Filters: Oil filter & strainer for TP400 engine |
| Harmonic Drive UK Ltd | Analysis | Gears & Assemblies: Harmonic Drive systems, precision gears, gear units, gearboxes and servo actuators |
| Pankl Aerospace Systems Europe GmbH | Analysis | Shafts & Shaft Assemblies: Engine shafts |
| Safran Transmission Systems | Analysis | Gearboxes: Accessory gear box |
| Collins Aerospace, Actuation Systems | Analysis | Synchrophasers: Propeller control module |
| Collins Aerospace, Propeller Systems (Ratier Figeac) | Analysis | News | Composite Propellers: FH386 eight-bladed propeller system |
| Dassault Systemes Simulia | Analysis | Computer-aided Engineering: Finite element analysis software |
| KUKA Systems Aerospace France | Analysis | Robotic Parts & Equipment: Automation equipment for ramp door |
| Breeze-Eastern Corporation | Analysis | Winches: Cargo winch; Lifting Equipment: Optional power crane above cargo ramp |
| Didsbury Engineering Co Ltd | Analysis | Hoists: Minilift hoist; Lifting Equipment: Purge-Air, Fuel Tank entry systems |
| Aercal Aerospace SA | Analysis | Heat Treatment: ; Stress Relieving: |
| MTorres Disenos Industriales S.A. | Analysis | News | Ultrasonic Inspection Equipment: Ultrasonic inspection systems |
| Aercal Aerospace SA | Analysis | Machining Services: ; Turning: |
| MTorres Disenos Industriales S.A. | Analysis | News | Milling: Milling systems with flexible tooling; Cutting Equipment: Ultrasonic cutting systems |
| ZB3 Technologies Ltd | Analysis | Drilling Equipment: Halosensor drill position locator |
| Airbus Defence & Space, San Pablo | Analysis | Final Assembly: |
| ATS Applied Tech Systems Ltd. | Analysis | Optical Measurement Equipment: LMI probes to measure spar sections with DataMyte Data Collectors (for Airbus Filton & GKN) |
| Aercal Aerospace SA | Analysis | Welding: |
| Aercal Aerospace SA | Analysis | Chemical Milling: |
| Aercal Aerospace SA | Analysis | Laser Cutting: |
| Aritex Cading SA | Analysis | Plant Automation Equipment: Horizontal Tail Plane (HTP) assembly line |
| AVT Europe NV | Analysis | Materials Handling Equipment: Remote-controlled automated guided vehicle on air cushion technology to move aeroplane fuselage sections up to 40 ton between different work stations and final assembly position; Riveting Equipment: Fuselage riveting machine that fixes the noise cone to the central fuselage |
| Komax Laselec SA | Analysis | Marking Equipment: UV laser wire & cable marking equipment |
| Aercal Aerospace SA | Analysis | Bending: ; Deburring: ; Forming: ; Stamping: |
| Aercal Aerospace SA | Analysis | Anodizing Services: ; Paint Application: ; Passivation: |
| AKAER | Analysis | Engineering Design Services: Development of composite structures for the main landing gear door and the inboard leading edge cowling. Complete design, certification and sustaining. |
| Cascade Engineering | Analysis | Engineering Design Services: Led teams to develop design solutions for the flap track attachment fittings |
| CT Ingenierie | Analysis | Engineering Design Services: Detailing design for engine cowlings, HTP, wing ribs |
| Elimco Aerospace | Analysis | Electrical Consultants: Customer FAL support |
| Sener Ingenieria & Sistemas SA | Analysis | Engineering Design Services: Design of fuel tank access covers (with Brookhouse Composites) |
| Dutch-Shape BV | Analysis | Tooling: Complete tooling for skin & wing section |
| Electroimpact | Analysis | Tooling: Aircraft tooling and manufacture |
| Indaero Grupo Emergy (was Indaero Tecnigrab) | Analysis | Tooling: |
| Manufax Engineering Ltd. | Analysis | Tooling: Mould tools and vacuum holding fixtures for flap & aileron component skins; Jigs & Fixtures: Partial wing build fixture |
| MTorres Disenos Industriales S.A. | Analysis | News | Laser Tooling: Laser scribers with flexible tooling |
| Alpex Technologies GmbH | Analysis | Special Purpose Tools: INVAR Infusion tools for CFRP-spars |
| Datum Tool Design Ltd. | Analysis | Special Purpose Tools: Invar Cure Tools |
| Le Creneau Industriel | Analysis | Machine Tools: |
| Lomas Engineering Limited | Analysis | Cutting Tools: |
| MTorres Disenos Industriales S.A. | Analysis | News | Insertion/Removal Tools: Automatic clip installation system |
| Omega Technologies, Inc. | Analysis | Insertion/Removal Tools: Fastener installation & removal tools; hole drilling & preparation tools |
| Marshall Aerospace Test Services | Analysis | News | Flight Testing: Flight testing of TP400-D6 engine |
| Cascade Engineering | Analysis | Computer-aided Analysis: Created and used wing FE models for the flap track attachment fittings |
| CK Technologies (UK) | Analysis | Cable Test Equipment: Automatic wiring harness & electrical panel test systems |
| CTA - Aeronautical Technologies Centre | Analysis | News | Test Equipment: Automated actuator test beds |
| Elimco Aerospace | Analysis | Electric/Electronic Test Equipment: Electrical ground support equipment |
| EMC Partner AG | Analysis | News | Test Equipment: |
| MK Test Systems Ltd | Analysis | Electric/Electronic Test Equipment: Wire harness testing |
| Siemens Industry Software NV | Analysis | News | Vibration Analysers: 700-channel SCADAS II hardware & Test.Lab software system |
| Spherea Test & Services | Analysis | Automated Test Equipment: Automatic test equipment |
| TechSAT GmbH | Analysis | Test Equipment: Core system of military test facility; system integration benches, AFDX & A429 bus interfaces, CMS simulation |
| Test-Fuchs GmbH | Analysis | Electric/Electronic Test Equipment: Test equipment for electric systems; Hydraulic Test Equipment: Test equipment for hydraulic components |
| Testek Solutions - Wixom (formerly Avtron and Testek) | Analysis | Pneumatic Test Equipment: Pneumatic test stand; Test Stands: Generator test stand (IDG); Fuel Test Equipment: Fuel test stand; Automated Test Equipment: Automatic test equipment test stand; Hydraulic Test Equipment: Hydraulic test stand |
| Vector Informatik GmbH | Analysis | Electric/Electronic Test Equipment: Oscilloscope for CAN busline voltage; Electronic Analysers: Software tool for LRU & network analysis |
| Cascade Engineering | Analysis | Stress Analysis: Conducted static & F&DT design & certification analysis for the flap track attachment fittings |
| IABG mbH | Analysis | Fatigue Testing: |
| Phixos | Analysis | News | Data Analysis: Verification activities on TP400-D6 engine, including code reviews, static analysis, control & data flow analysis & module testing |
| Strand Aerospace Malaysia | Analysis | Stress Analysis: Design and type certification stress analysis of FLE and FTE structures; Fatigue Testing: Aileron support structure, spoiler support structure, F&DT. Also, nose and main landing gear structures |
| Thiot Ingenierie | Analysis | Testing Services: Impact testing |
| TUV SUD Product Service | Analysis | Testing Services: |
| Woodford Engineering Consultancy (UK) Ltd. | Analysis | Certification Services: Certification engineering services |
