AIRCRAFT PROGRAM
| Lift type | Fixed wing | ||
| Construction type | Factory-built | ||
| Control type | Piloted | ||
| Engine type | Turbofan | ||
| Application | Cargo, Passenger medium | ||
| Final assembly | Montreal (Mirabel) , Mobile Downtown | ||
| Search for other aircraft programs with these properties on the Aircraft Programs directory page. | |||
Subscribe today
and log in for unlimited access

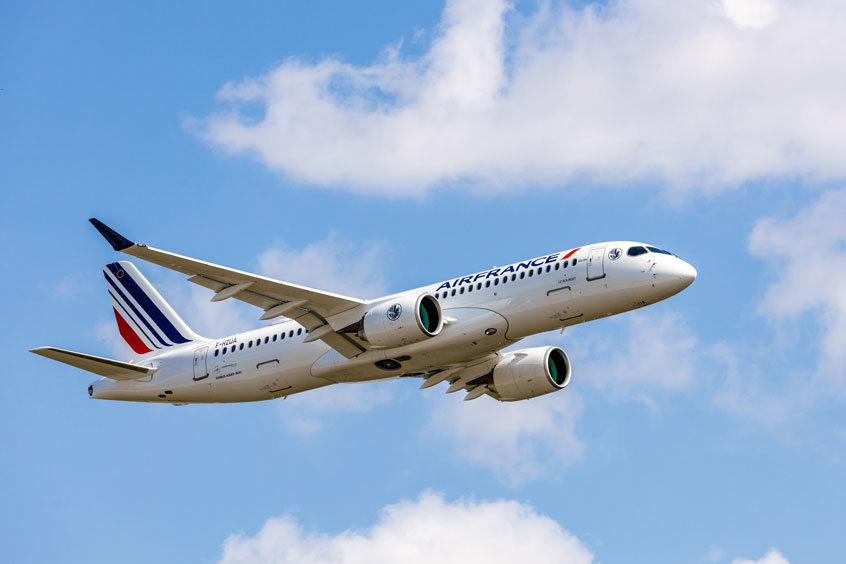

Family of twin-jet narrow-body airliners. Final assembly in Mirabel, Canada and also Mobile, Alabama from 2020. Designed by Bombardier and previously known as Bombardier C-Series, CS100 and CS300. Airbus acquired a majority stake in the program in 2018 after which the C-Series was known as A220 with 2 variants A220-100 and A220-300.
Aerodynamic swept low wing with winglets, sweptback tail-surfaces and wing-podded Pratt & Whitney turbofan engines, as well as a largely composite structure contribute to high efficiency of the aircraft. Composite wings, radome, belly fairing, engine nacelles, rear fuselage and tail surfaces; aluminium-lithium centre fuselage; titanium engine pilons and extreme tailcone. Large passenger windows, wide seats and overhead bins.

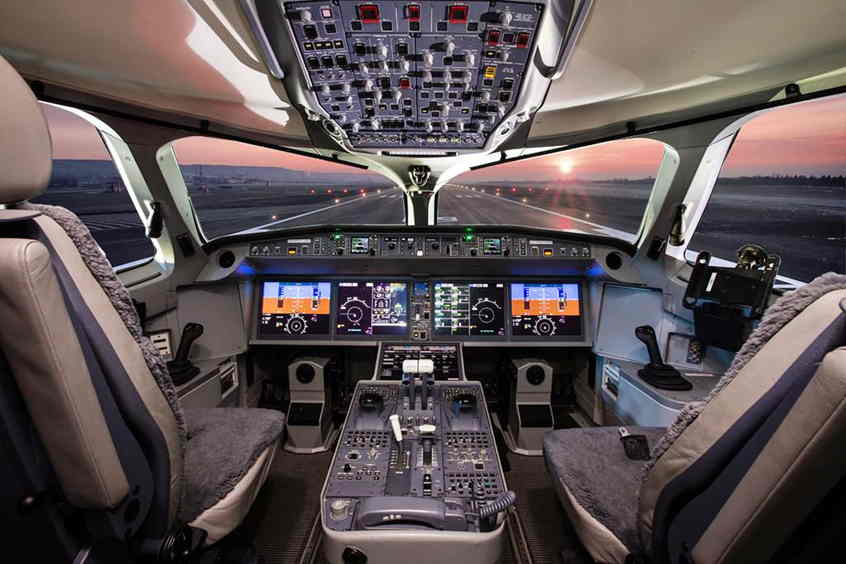

Two crew with two EFIS displays, fly-by-wire flight controls and side-stick controller.
| Variant | Launch/First flight | Production end | |
| Airbus A220 | 2008 / 2013 | Twin-jet airliner, 108 to 133-seater, previously known as CS100. | |
| Airbus A220-300 | 2008 / 2013 | 130 to 160-seater variant with fuselage extended by 2 plugs, prevosuly known as CS300. | |
| Airbus ACJ Two-Twenty | 2020 / 2021 | Business Jet variant based on A220-100. |
View full news archive for the Airbus A220.
See recent updates (latest 24/12/2024)
| Airbus S.A.S. | News |
Other aircraft programs: Airbus A380, Airbus A320, Airbus A330, Airbus A350, Airbus POP.UP, Airbus Perlan II, Airbus ZEROe
| Management | Professional Services (1) |
| Design | Design (1) Design Software (5) |
| Materials | Composites (7) Metals (5) Non-metal Materials (1) |
| Components | Active Electronic Components (1) Actuation (1) Bearings (1) Electrical Components (3) Lighting (2) Mechanical Components (8) Mechanical Connectors (1) Non-Mechanical Components (1) Passive Electronic Components (2) Sensors, Transducers & Detectors (1) Structural Components (7) Valves (2) Windows & Glass (1) |
| Airframe Systems | Airframe Assemblies (19) Cabin Interiors (5) Cargo Systems (1) Environmental Systems (8) Fluid Power (3) Landing Assemblies (3) Oxygen Systems & Equipment (1) Safety & Security Systems (4) |
| Avionics | Avionic Components (1) Flight and Data Management (4) Imaging and Visual Systems (1) Indicators and Instruments (5) Navigation Aids (Airborne) (1) Warning Systems (1) |
| Power Systems | Auxiliary Power (2) Electrical Power Systems (1) Engine Components (8) Engines (1) Fuel Systems (1) Power Transmission (2) |
| Production | Computer Integrated Manufacturing (3) Handling Equipment (1) Heat Treatment (1) Machining (3) Manufacturing Services (4) Metal Removing (1) Processes (1) Production Control (1) Production Equipment (2) Sheet Metal Processes (1) Surface Treatment (1) Technical Consultants (2) Tooling (5) |
| Testing | Computer-Aided Testing (1) Test Equipment (3) Test Services (2) |
| Corena USA Inc. | Analysis | News | Technical Manuals: S1000D CSDB configuration kit |
| TC Inter-Informatics a.s. | Analysis | Design Services: Assembly jig design for wing fixed leading edge, for Aero Vodochody |
| CAE Inc. | Analysis | News | Computer-aided Simulation: Engineering services & simulation based technology tools for design, testing & certification (A220) |
| Frazer-Nash Consultancy Ltd | Analysis | News | Computer-aided Simulation: Ditch scenario modelling |
| Siemens Digital Industries Software Inc. (was Siemens PLM Software) | Analysis | News | Computer-aided Design: FiberSim software |
| Stirling Dynamics Ltd. | Analysis | News | Computer-aided Simulation: Load analysis |
| Strand Aerospace Malaysia | Analysis | Computer-aided Design: 3D to 2D drafting for the Bombardier C-Series Thrust Reverser Actuation System components |
| DEMA SpA | Analysis | Subcontracted Composite Parts: Cockpit components |
| MTorres Disenos Industriales S.A. | Analysis | Composite Tape Lay-down: Automatic tape laying systems |
| PAC Group | Analysis | Reinforced Composite Molding Compounds: |
| SAERTEX GmbH & Co. KG | Analysis | News | Polymer Composites: High-performance multi-axial and uni-directional non-crimp fabrics for the production of major primary structures, including wing skins |
| Syensqo (was Solvay) | Analysis | News | Resins: CYCOM liquid resin infusion system for manufacturing of wing structural elements |
| Syensqo (was Solvay) | Analysis | News | Carbon-reinforced Composites: Advanced composite materials; Resins: For resin-infused wing (via Spirit AeroSystems Belfast) |
| Teijin Carbon Europe GmbH | Analysis | News | Carbon-reinforced Composites: Carbon fibre material |
| Constellium Issoire | Analysis | News | Superalloys: AIRWARE advanced aluminium-lithium alloy technology for primary structure (A220-100); Aluminium: AIRWARE low density alloys |
| Gould Alloys Ltd. | Analysis | Metal & Alloy Suppliers: |
| Hermith GmbH | Analysis | News | Titanium: Titanium semi-finished materials (bars, rectangular bars, billets, tubes, plates/cut-to-size plates, wire) |
| Kanfit Ltd | Analysis | Metal & Alloy Fabrications: Metal parts |
| Titanium Industries Inc. | Analysis | Titanium: Supply coordinator to Bombardier and all major titanium parts suppliers |
| Attewell Ltd. | Analysis | Packings: Packers & fillers; Laminates: Laminated polyimide sheet & components |
| Firan Technology Group (FTG) | Analysis | News | Printed Circuit Boards: |
| Collins Aerospace, Mechanical Systems - Actuation | Analysis | News | Electromechanical Actuators: High lift flap & slat actuation systems, including actuators, power drive units, wing tip brakes, electronic control units, cockpit levers, transmission shafts & sensors. Thrust reverser actuation system for PW1000G engine. |
| Fokker Techniek | Analysis | News | Wire Harnesses: Electrical wiring interconnection system (EWIS). Flight test & instrumentation wiring for certification |
| GKN - Fokker Aerostructures | Analysis | News | Wire Harnesses: Electrical wiring interconnection systems (EWIS) |
| Triumph Integrated Systems - Fluid Power & Actuation - Clemmons | Analysis | News | AN/MS/NAS Series Cables: On Wing Emergency Exit Door (OWEED) control cables |
| Collins Aerospace, Interiors | Analysis | Aircraft Exterior Lighting Systems: External lighting systems; Aircraft Interior Lighting Systems: Cabin & maintenance lighting systems |
| Safran Cabin (was Zodiac Cabin Interiors) | Analysis | News | Cabin Lighting: Lighting system (A220) |
| Attewell Ltd. | Analysis | Shims: Laminated & solid shims, taper shims |
| Falgayras | Analysis | Windshield Wipers: Wipers and wiper motors (A220) |
| Ho-Ho-Kus, Inc. | Analysis | Latches: |
| Icon Aerospace Technology (was Icon Polymer Group) | Analysis | Rubber & Silicone Seals: Custom aerodynamic & fireproof seals |
| RO-RA Aviation Systems GmbH | Analysis | Mechanical Fittings: Structural rods (flap-track farings) |
| SACS Aerospace GmbH (was SACS Boysen Aerospace Group) | Analysis | Latches: |
| Woodward, Inc. | Analysis | News | Engine Control Quadrants: Throttle quadrant assembly (A220) |
| Zhejiang Xizi Aviation Industry Co., Ltd. | Analysis | Mechanical Fittings: Doubler |
| Precision Coil Spring Co. | Analysis | Springs: |
| TTTech Computertechnik AG | Analysis | News | Data Bus: Time-triggered protocol (TTP) data bus for fly-by-wire system (through Parker Aerospace); and for flight control computer (through Rockwell Collins) |
| Vector Informatik GmbH | Analysis | Data Bus: Bus interface for CAN |
| Parker Meggitt SA | Analysis | News | Sensors/Transducers: Sensor package for PW1524G engine (through Hamilton Sundstrand) |
| Air Industries Machining Corp | Analysis | News | Aircraft Structural Components: Thrust struts for Pratt & Whitney Geared-Turbo-Fan (GFT) jet engine |
| Asco Industries N.V | Analysis | Flap/Slat Mechanisms: Flap supports system |
| Figeac-Aero | Analysis | News | Aircraft Structural Components: Titanium and aluminium structural components |
| L3Harris (was L3 MAS) | Analysis | News | Aircraft Structural Components: Ballast boxes |
| RO-RA Aviation Systems GmbH | Analysis | Aircraft Structural Components: Structural machined components |
| Sonaca SA | Analysis | News | Flap/Slat Mechanisms: Wing slats & tracks (A220) |
| Zollern GmbH & Co. KG Investment Casting | Analysis | Metal & Alloy Castings: Steel castings for landing gear; cast housing for landing gear steering control unit; investment cast housing for air-water separator |
| Lee Products Ltd. | Analysis | Hydraulic System Valves: |
| The Lee Company | Analysis | Check Valves: ; Relief Valves: ; Hydraulic System Valves: ; Pressure Control Valves: |
| PPG Transparencies | Analysis | Windshields: Double-curvature windscreen (A220) |
| Aercal Aerospace SA | Analysis | Fairings: |
| Aero Vodochody Aerospace a.s. | Analysis | News | Aircraft Control Surfaces: Wing fixed leading edges (A220) |
| Airbus Atlantic - Nantes | Analysis | Fuselage Sections: Centre wing box |
| AVIC SAC Commercial Aircraft Company Ltd | Analysis | News | Fuselage Sections: Centre and rear fuselage (A220); Empennages: Tailcone structure (A220); Aircraft Doors: (A220); Wings: Wing-to-fuselage wingbox, centre wing box, wing-body fairing (A220) |
| Ducommun AeroStructures | Analysis | News | Fuselage Sections: Fuselage skins (A220) |
| Dynamatic Technologies Limited | Analysis | News | Aircraft Doors: Escape hatch door assembly |
| FACC AG | Analysis | News | Fairings: Wing-to-body fairings; Radomes: ; Empennages: Empennage components - rudders and elevators (A220) |
| GKN Aerospace - Cowes | Analysis | News | Winglets: Composite winglet and ailerons (A220) |
| L3Harris (was L3 MAS) | Analysis | News | Aircraft Doors: Emergency exit doors |
| Leonardo Aeronautics (Alenia) | Analysis | News | Aircraft Control Surfaces: Horizontal & vertical stabilizers, including hydraulic, electrical & flight control systems, lights & antennas (A220) |
| MA Group (Magnaghi Aeronautica) | Analysis | News | Wing Flaps: Composite inboard/outboard flaps; Wing Spoilers: ; Aircraft Doors: Main landing gear doors |
| Parker Aerospace Control Systems | Analysis | News | Fly-by-Wire Systems: Fly-by-wire flight control system |
| Senior Aerospace SSP | Analysis | News | Bleed Air Systems: High pressure bleed air & ram air ducting systems (A220) |
| Sonaca SA | Analysis | News | Wings: Fixed leading edges (A220) |
| Spirit AeroSystems Belfast | Analysis | News | Wings: Composite wings; Fuselage Sections: Rear and mid fuselage, and cockpit |
| Spirit AeroSystems, Inc. | Analysis | News | Fairings: Aft fairing package |
| STELIA Aerospace North America Mirabel | Analysis | News | Fuselage Sections: Nose fuselage section |
| Turkish Aerospace Industries (TAI) | Analysis | News | Aircraft Control Surfaces: Fixed trailing edge (A220) |
| Woodward, Inc. | Analysis | News | Aircraft & Helicopter Controllers: Rudder pedals (A220) |
| Astronics PECO | Analysis | News | Passenger Service Units (PSUs): |
| Latecoere Interconnection Systems | Analysis | Inflight Entertainment: ACJ Smart LiFi monitor (ACJ Two-Twenty) |
| Panasonic Avionics Corporation | Analysis | News | Cabin Management Systems: Cabin management system incorporating passenger address system; Inflight Entertainment: Optional eXConnect broadband connectivity system (A220-100) |
| Safran Cabin (was Zodiac Cabin Interiors) | Analysis | News | Passenger Seating: Seats (A220); Aircraft Interiors: Interiors, including linings & monuments (A220); Storage Bins: Bins (A220); Galleys: (A220); Lavatory Equipment: Lavatories (A220) |
| Safran Seats France (Zodiac) | Analysis | News | Passenger Seating: Z110i (short/medium-haul economy seat) and Z600 (business model) SFE seats (Supplier Furnished Equipment) from 2023 |
| Davis Aircraft Products | Analysis | Cargo Systems: Safety tiedown and cargo control products |
| CTT Systems AB | Analysis | News | Air Conditioning Equipment: Inflight Humidification (IFH) system - four humidifiers and one anti-condensation unit |
| Donaldson Company, Aerospace & Defense | Analysis | News | Air Filters: Avionics bay cooling air filters (through Liebherr) |
| Electrofilm Manufacturing Co. | Analysis | News | Air Heaters: NXT galley heater ducts |
| L3Harris (was L3 MAS) | Analysis | News | Water Systems: Water tanks |
| Liebherr-Aerospace Toulouse | Analysis | News | Air Conditioning Equipment: Air management system, including environmental control system (A220); Cabin Pressure Control Systems: (A220) |
| Safran Cabin (was Zodiac Cabin Interiors) | Analysis | News | Acoustic Insulation: Insulation system (A220); Airborne Waste Removal Systems: Waste system (A220); Water Systems: Water system (A220) |
| Senior Aerospace BWT | Analysis | News | Air Conditioning Equipment: Low pressure air distribution systems for cabin & cockpit environmental control systems |
| Triumph Aerospace Structures - Interiors - Mexicali | Analysis | News | Thermal Insulation: Primary thermal acoustic insulation system |
| Flexial Corporation | Analysis | Accumulators: Accumulators for primary hydraulic system & flight control actuation systems |
| Parker Aerospace Hydraulic Systems | Analysis | News | Hydraulic Systems & Equipment: Hydraulics system |
| The Lee Company | Analysis | Hydraulic Filters: ; Hydraulic Systems Restrictors: |
| Liebherr-Aerospace Lindenberg GmbH | Analysis | News | Aircraft Landing Gear: Main and twin-wheel, nose landing gear system (A220/A220-100) |
| Michelin Aircraft Tire Corporation | Analysis | Tyres: NZG radial tyres (A220-100) |
| Parker Meggitt Aircraft Braking Systems Corporation | Analysis | News | Aircraft Wheels: ; Carbon Brakes: Electro-mechanically actuated carbon brakes, E-brakes (A220-100); Brake System Components: Brake control system & brake wear monitoring; Tyre Pressure Monitors: (A220-100) |
| Safran Cabin (was Zodiac Cabin Interiors) | Analysis | News | Oxygen Systems: Oxygen system (A220) |
| Collins Aerospace, Sensors & Integrated Systems (Kidde) | Analysis | News | Fire Fighting/Detection Systems: Integrated fire protection system including smoke & fire detectors, environmentally-friendly fire extinguishers & control electronics (A220) |
| Honeywell Aerospace | Analysis | News | Emergency Locator Transmitters: Emergency locator (A220) |
| Lufthansa Technik | Analysis | News | Emergency Lighting Systems: GuideU floor proximity lighting system |
| Orolia | Analysis | News | Emergency Locator Transmitters: Ultima-DT, an Emergency Locator Transmitter, Distress Tracking type (ELT-DT) |
| Korry Electronics | Analysis | News | Control Panels: Integrated cockpit control panels using Opticon solid-state switching technology |
| Collins Aerospace, Avionics Division | Analysis | News | Onboard Computers: Primary flight control computer, attitude heading computer for fly-by-wire flight control system (A220) |
| Garmin International | Analysis | Autopilots: (A220-100) |
| Honeywell Aerospace | Analysis | News | Flight Recorders: Information Recording System (IRS) (A220) |
| L3Harris (was L3 Aviation Recorders) | Analysis | News | Flight Recorders: SRVIVR25 ARINC 757 Cockpit Voice Recorder (CVR) and FDR (A220) |
| Collins Aerospace, Avionics Division | Analysis | News | Weather Mapping Radar: MultiScan weather radar |
| CMC Electronics Inc. | Analysis | News | Electronic Flight Instrument Systems: PilotView aircraft network switch |
| Collins Aerospace, Avionics Division | Analysis | News | Electronic Flight Instrument Systems: Pro Line Fusion integrated avionics; Head-Up Displays: HGS (option) |
| Collins Aerospace, Sensors & Integrated Systems | Analysis | News | Air Data Computers: SmartProbe air data system |
| Garmin International | Analysis | Electronic Flight Instrument Systems: G3X two-screen EFIS (A220-100) |
| L3Harris (was L3 Aviation Products) | Analysis | Electronic Flight Instrument Systems: GH-3900 electronic standby instrument system (as part of Pro Line Fusion) |
| Honeywell Aerospace, Sensor & Guidance Products | Analysis | Inertial Components & Systems: Inertial reference system |
| Collins Aerospace, Sensors & Integrated Systems | Analysis | News | Ice Detectors: Ice detection system |
| Honeywell Aerospace | Analysis | News | Auxiliary Power Units: 131-9C APU (A220) |
| ITT AcousticFab | Analysis | News | APU Components: APU inlet & exhaust systems |
| Collins Aerospace, Electric Power Systems | Analysis | News | Airborne Electrical Power Supplies: Electric power generation system; Power Distribution Equipment: Primary & secondary power distribution systems. Electrical power generating system. |
| Barnes Aerospace, Windsor CT | Analysis | News | Nacelles: Nacelle inlet bulkheads to UTC Aerospace |
| Collins Aerospace, Aerostructures, Singapore Service Center | Analysis | News | Nacelles: Nacelle fan cowl doors, inlet outer barrels for PW1000G engine; Thrust Reversers: Thrust reverser outer cowl design & analysis for PW1000G engine |
| Composite Technology Research Malaysia (CTRM) | Analysis | Engine Fan Casings: Fan cowl |
| GKN Aerospace Engine Systems | Analysis | News | Engine Housings: Intermediate case, turbine exhaust case, low pressure turbine shaft (for Pratt & Whitney) |
| MTU Aero Engines | Analysis | News | Engine Parts: Forward stages of the high-pressure compressor & high-speed low-pressure turbine for PW1524G engine |
| Parker Meggitt Plc | Analysis | News | Engine Heat Exchangers: Thermal management packages for P&W GTF engines (through Hamilton Sundstrand) |
| Senior Aerospace Jet Products | Analysis | News | Thrust Reversers: |
| Spirit AeroSystems, Inc. | Analysis | News | Engine Pylons: Pylon & strut-to-wing hardware (A220) |
| Pratt & Whitney Large Commercial Engines | Analysis | News | Turbofan Engines: (PW1000G - Airbus A220 - PW1519G/1521G-3/1524G; Airbus A220-300 - PW1525G; Airbus ACJ Two-Twenty - PW1500G ) |
| Parker Aerospace, Air & Fuel Division | Analysis | News | Fuel Inerting Systems: Fuel system; fuel tank inerting system |
| Avio Aero (GE Aerospace) | Analysis | News | Gear Drives: Fan drive gear system for PW1500G engine |
| BMT Aerospace International | Analysis | Gears & Assemblies: Rack & pinion gears for slat-slat/track mechanism |
| Coriolis Composites SAS | Analysis | News | Industrial Robots: Automated fibre placement robots |
| Dassault Systemes - DELMIA | Analysis | News | CIM Software: FlexNet manufacturing software |
| Siemens Digital Industries Software Inc. (was Siemens PLM Software) | Analysis | News | Computer-aided Engineering: SynchroFIT software for fastener management |
| Advanced Integration Technology (was Nova-Tech Engineering) | Analysis | News | Load Positioning Systems: Wing transportation AGVs (Spirit AeroSystems Belfast); Lifting Equipment: Composite wing spar components lifting devices, MGV & transportation vehicles; control surfaces lifting equipment |
| Aercal Aerospace SA | Analysis | Heat Treatment: ; Stress Relieving: |
| Aercal Aerospace SA | Analysis | Machining Services: ; Milling: |
| Ascent Aerospace North America | Analysis | Machining Systems: CMC waterjet machines |
| Novator AB | Analysis | News | Drilling Equipment: Orbital Portable M-Series drilling units for wing-to-body joint |
| Advanced Integration Technology (was Nova-Tech Engineering) | Analysis | News | Final Assembly: Wing final assembly pulse line |
| Airbus Canada | Analysis | News | Final Assembly: A220 Family aircraft for customers outside of the U.S. |
| Airbus U.S. Manufacturing Facility | Analysis | News | Final Assembly: A220 Family aircraft for customers in the U.S. |
| Turkish Aerospace Industries (TAI) | Analysis | News | Final Assembly: Centre mid lower fuselage panels |
| Aercal Aerospace SA | Analysis | Chemical Milling: |
| Aercal Aerospace SA | Analysis | Laser Cutting: |
| Thyssenkrupp Aerospace India Private Ltd. | Analysis | News | Supply Chain Management: Delivery of metal materials and supply chain services to Dynamatic Technologies |
| Aritex Cading SA | Analysis | Remote Positioning Systems: Rib and Stringer positioning cells for wings |
| Flow International Corp. | Analysis | Waterjet Equipment: Waterjets for cutting composite wing skin panels (for Spirit AeroSystems Belfast) |
| Aercal Aerospace SA | Analysis | Bending: ; Deburring: ; Forming: |
| Aercal Aerospace SA | Analysis | Anodizing Services: ; Paint Application: |
| Elisen Technologies Inc. | Analysis | News | Engineering Design Services: Engineering services for design & stress analysis of fuselage |
| Mecachrome Canada | Analysis | News | Engineering Design Services: Engineering services for design & stress analysis of fuselage |
| Advanced Integration Technology (was Nova-Tech Engineering) | Analysis | News | Jigs & Fixtures: Wing rigging fixtures (Spirit AeroSystems Belfast) |
| Advanced Integration Technology, Inc. | Analysis | Tooling: Final assembly line tooling |
| Ascent Aerospace North America | Analysis | Tooling: Production tooling for wings |
| Electroimpact | Analysis | Jigs & Fixtures: Assembly jigs for composite wing (to Spirit AeroSystems Belfast) |
| Janicki Industries | Analysis | Tooling: Wing tooling |
| Marinvent Corp | Analysis | News | Computer-aided Testing: Flight test management software |
| Moog Inc. | Analysis | News | Test Equipment: Wing test system |
| Vector Informatik GmbH | Analysis | Electric/Electronic Test Equipment: Oscilloscope for CAN busline voltage; Electronic Analysers: Software tool for LRU & network analysis; Electric/Electronic Test Equipment: Software tool for measurement & calibration |
| WTI (was Wineman Technology Inc.) | Analysis | Hydraulic Test Equipment: Hydraulic system integrator test rig; Test Equipment: RAM air turbine system simulator; auxiliary system generator simulator; turbine engine system generator |
| Element Anaheim (was NTS Anaheim/HQ) | Analysis | News | Testing Services: Electrical power system testing |
| Strand Aerospace Malaysia | Analysis | Testing Services: Thrust reverser components, finite element analysis |
